Pack of 100 - MIFARE Ultralight Card EV1

Pack of 100 - MIFARE Ultralight Card EV1
Availability: In stock info icon
×

Stock availability on SmartcardFocus

Coming soon - We are arranging supplies of this product. You will not be able to order just yet. Check back soon, or contact us to find out more about timescales.
In stock - This product is on the shelf in our UK warehouse and ready for use. If you place an order you can expect immediate dispatch. Depending on courier, delivery is typically next day in the UK, or 3-5 days in the US.
In stock* - This product is on the shelf in our UK warehouse, but requires some configuration or assembly before dispatch, which can add a day or two to delivery times, depending on product and order quantities.
Low stock - This product is on the shelf in our UK warehouse. If your order quantity is small you will not notice any difference from 'in stock' product. If you are ordering larger quantities, there could be delays while we wait for additional stock to arrive. Contact us to discuss options for part delivery.
Stock on the way - This product is usually on the shelf in our UK warehouse, but we have sold out and are waiting for new stock to arrive. You can still order but delivery will be slower than usual. Contact us to find out more about timescales.
Ordered on demand - We have a regular supplier but will only order when an order is placed with us and can then advise on delivery timescales. Please note that 'Ordered on demand' items are not returnable.
Contact us - There are currently supply issues with this product. You will not be able to order the product. Contact us to find out more about the nature of any issues and for advice on alternatives.
Not available - There are no plans to restock this item, it will shortly be removed from the site.
£ 40.00
(£ 48.00 inc VAT)
Units
Per Unit
1+
£ 40.00
Prices shown are per unit, excluding VAT and delivery.
Please contact us for volume and reseller pricing.
The MIFARE Ultralight EV1 chip from NXP in plain PVC card format. Operates at 13.56 MHz wireless frequency, according to the ISO 14443A standard and contains 48 bytes of usable read/write memory.

The EV1 version of the Mifare Ultralight card supports the following security features:
  • 3 independent one-way counters
  • Optional password protection of reading or writing
  • Originality check feature
MIFARE Ultralight EV1 chips typically operate at a distance of up to 10cm depending on the power provided by the reader and are fully backwards compatible with previous versions. This card is ideal for various low-cost contactless ID/ticketing applications.

This card is NFC forum type 2 compliant.

Supplied as blank white printable PVC cards in packs of 100, to ISO standard size and thickness. Our cards contain only original NXP chips and use premium quality materials and production methods in order to ensure maximum performance, reliability and compatibility.

MIFARE Ultralight



MIFARE RF Interface (ISO/IEC 14443 A)
Operating distance: Up to 100mm
Operating frequency: 13.56 MHz
Data transfer: 106 kbit/s
Data integrity: 16 Bit CRC, parity, bit coding, bit counting
Typical ticketing transaction: <35 ms (including backup management)
Fast counter transaction: <10 ms (including backup management)

EEPROM
512 bit, organised in 16 pages with 4 byte each
Field programmable read-only locking function per page
32 bit user definable One Time Programmable (OTP) area
384 bit user r/w area (12 pages)

Data retention of 5 years
Write endurance 100 000 cycles

Security
Anti-cloning support by unique 7 Byte serial number for each device
32 Bit user programmable OTP area
Field programmable read-only locking function per page

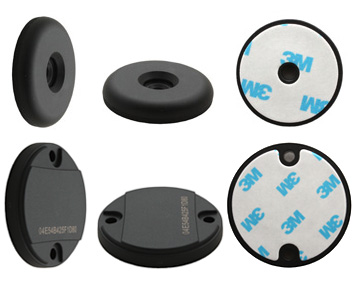

Further images of the MIFARE Ultralight All Surface Tag - 35 mm and MIFARE Ultralight All Surface Tag - 50 mm Engraved are shown below.

Manufacturer: NXP

MIFARE Ultralight


MIFARE Ultralight EV1 Card Product Briefing

MIFARE Ultralight EV1 Cardx100_product_briefing.pdf
Download everything you have read here on SmartcardFocus about the MIFARE Ultralight EV1 Card.
download


MIFARE Ultralight EV1 Card Technical Specification

TechnicalSpecification_MF0ULX1_Apr2019.pdf
Datasheet v3.3 for the MF0ULX1 from NXP.
download
×
