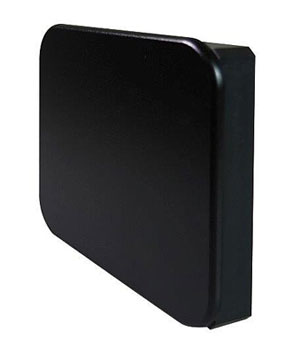

The Elatec TWN4 contactless reader is a flexible and intelligent USB unit designed for panel mounting, and that is capable of reading and writing a wide range of contactless and RFID cards and tags, operating at both 125KHz and 13.56MHz.
Part of the TWN4 family of devices, with a wide range of options, this standard version is capable of working with many low frequency tags, such as EM, HiTag and AWID, as well as the full range of high frequency technologies including MIFARE, PicoPass and FeliCa, according to the ISO 14443, ISO 15693 and ISO 18092 NFC standards.
The USB interface defaults to keyboard emulation (wedge) mode, but can be re-configured to support either standard CCID mode (for PC/SC operation) or as a virtual COM (serial) port, by installing different firmware. The TWN4 is therefore suited to many applications including on-demand printing, access control enrolment and kiosk operation, especially where compatibility with multiple card technologies is required.
In addition, the TWN4 can be enhanced through on-board programming, to enable custom applications, for example to enable specific data to be read securely from cards and returned down the keyboard or virtual serial port to a 'dumb' application or device. To support this, it also includes two on-board SAM slots for secure key storage or other uses, and a free SDK, included in the package.
The manufacturer's part number for this reader is T4PA-FB6B. Other versions are available with HID Prox and iClass compatibility, as well as various desktop and OEM board formats, with optional BLE and contact smartcard interfaces if required - please contact us for more details.
TWN4 MultiTech USB desktop contactless reader Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, and providing keyboard emulation and CCID modes.
£ 147.68
Ordered On Demand
TWN4 MultiTech USB desktop contactless reader Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, and providing keyboard emulation and CCID modes.
£ 147.68
Ordered On Demand
TWN4 MultiTech USB desktop contactless reader Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, and providing keyboard emulation and CCID modes.
Ordered On Demand
£ 147.68
TWN4 MultiTech USB contact and contactless reader Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, as well as contact smartcards, and providing keyboard emulation and CCID modes.
£ 217.48
Ordered On Demand
TWN4 MultiTech USB contact and contactless reader Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, as well as contact smartcards, and providing keyboard emulation and CCID modes.
£ 217.48
Ordered On Demand
TWN4 MultiTech USB contact and contactless reader Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, as well as contact smartcards, and providing keyboard emulation and CCID modes.
Ordered On Demand
£ 217.48
TWN4 MultiTech USB contactless reader with BLE Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, and providing keyboard emulation and CCID modes as well as a BLE interface.
£ 182.52
Ordered On Demand
TWN4 MultiTech USB contactless reader with BLE Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, and providing keyboard emulation and CCID modes as well as a BLE interface.
£ 182.52
Ordered On Demand
TWN4 MultiTech USB contactless reader with BLE Flexible and programmable smartcard reader/writer compatible with most 125KHz (LF) and 13.56MHz (HF) cards and tags, and providing keyboard emulation and CCID modes as well as a BLE interface.
Ordered On Demand
£ 182.52
*Volume discounts may be available. Click on the product for further information.
Elatec TWN4 MultiTech panel mount reader Technical Specification
